0.4mm PPGI Aluminum Gutter Rolling Machine Machine Seamless

Brand Name : TECHWELL

Model Number : TW-GM5

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Contact Us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Delivery Time : 60-70 working days

Packaging Details : Standard packing

Forming Material : PPGI, Aluminum

Coil Thickness : 0.4-0.8mm

Forming Speed : 0-15m/min

Forming Stations : About 15 Stations

Shaft Material : 45# high grade steel tempering treatment (HB220-260)

Roller Material : 45# high grade steel, and roller surface with hard chrome

Contact Now

PPGI, Aluminum Forming Material Gutter Roll Forming Machine For Making Rainwater Gutter , Seamless Gutter

Main Specifications

Coil Material Thickness 0.4-0.8mm
Coil Width Custom-made
Material PPGI, Aluminum
Decoiler / Uncoiler Decoiler Type Manual or Hydraulic or Auto
Coil Width Max.1250mm
I.D 508-610mm
O.D Max. 1500mm
Gutter Roll Forming Machine Forming Stations About 15 stations (depend on final profile)
Roller Material 45# high grade steel, and roller surface with hard chrome ≥ 0.05mm
Diameter of Shaft 65mm
Shaft Material 45# high grade steel tempering treatment (HB220-260)
Drive Type Chain of Transmission
Forming Speed 0-15m/min (excluding cutting time)
Main Power 5.5KW
Cutting Device Cutting Type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
Cutting Power 3KW
Cutting Tolerance +/-1.5mm
Encoder OMRON Brand
Electrical Control Box PLC PANASONIC Brand
Inverter YASKAWA Brand
Touch screen PANASONIC
Operation Type Touch screen + Button

Working Flow Chart

Decoiler --- Pinch Feeding --- Main Roll Forming --- Hydraulic Cutting --- Support Table

Main Components

  • Decoiler / Uncoiler ------------------------------------------------------------1 Unit
  • Pinch Feeding -----------------------------------------------------------------1 Unit
  • Main Roll Forming ------------------------------------------------------------1 Unit
  • Hydraulic Cutting--------------------------------------------------------------1 Unit
  • Hydraulic Station--------------------------------------------------------------1 Unit
  • Electrical Control Board------------------------------------------------------1 Unit
  • Run-out Table------------------------------------------------------------------1 Unit

Reference Profile Drawing

0.4mm PPGI Aluminum Gutter Rolling Machine Machine Seamless

0.4mm PPGI Aluminum Gutter Rolling Machine Machine Seamless

Competitive Advantages

  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

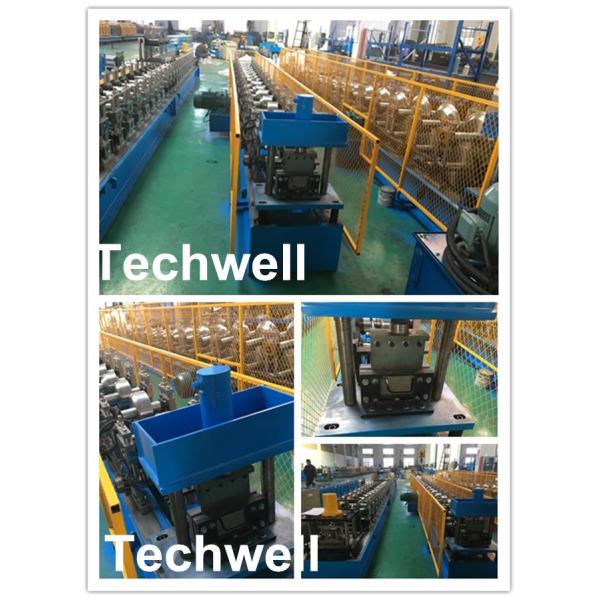

Machine Pictures

0.4mm PPGI Aluminum Gutter Rolling Machine Machine Seamless

Contact of Details

Company Wuxi Techwell Machinery Co.,LTD
Website www.cold-rollformingmachine.com
www.roofrollformingmachine.com
www.wxtechwell.com
Mobile 0086-15861597732( Lemon )
E-Mail / Skype sales@wxtechwell.com
